SPECIALIZED TRUCK EQUIPMENT

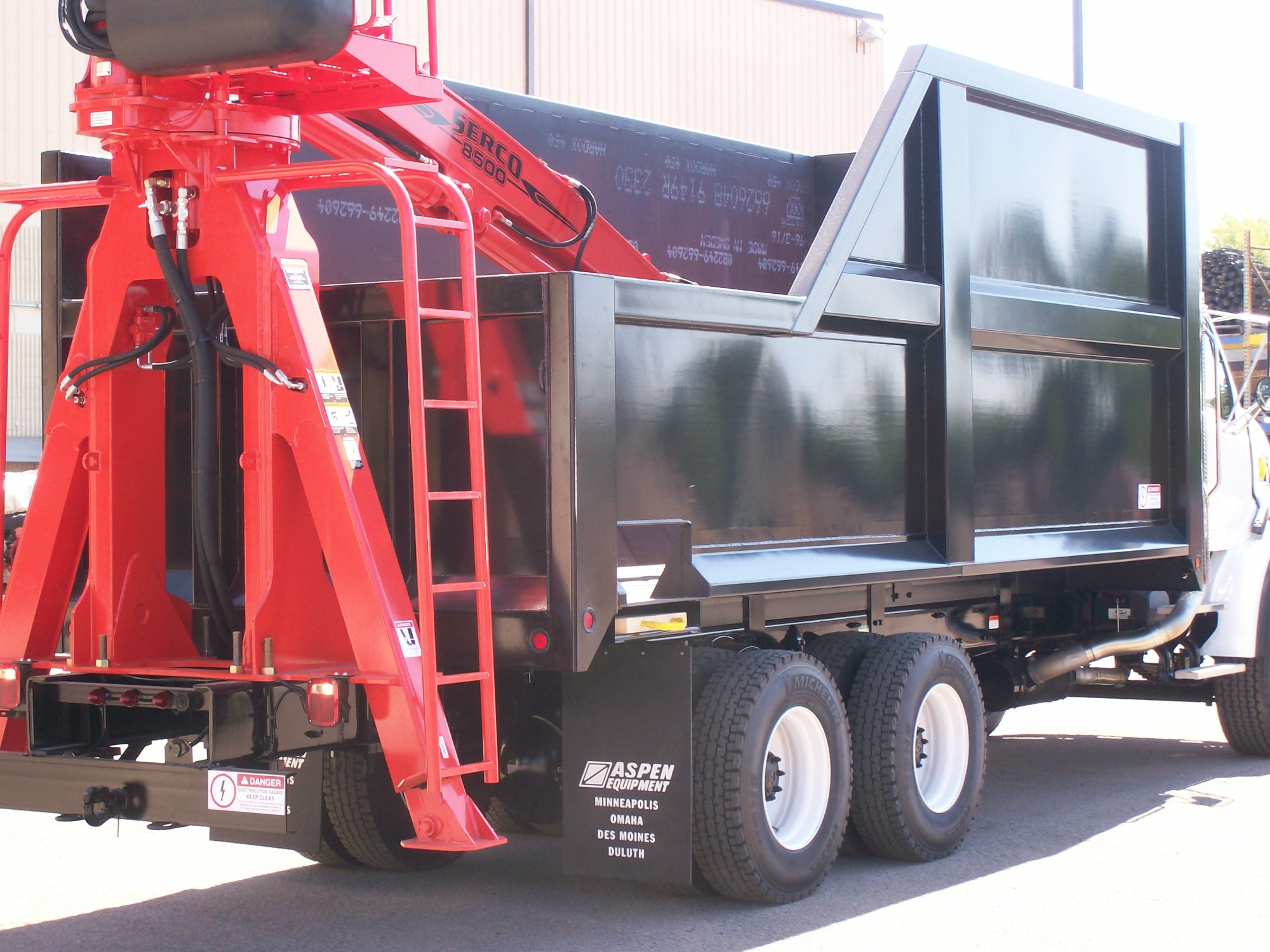

CONTRACTOR BODIES

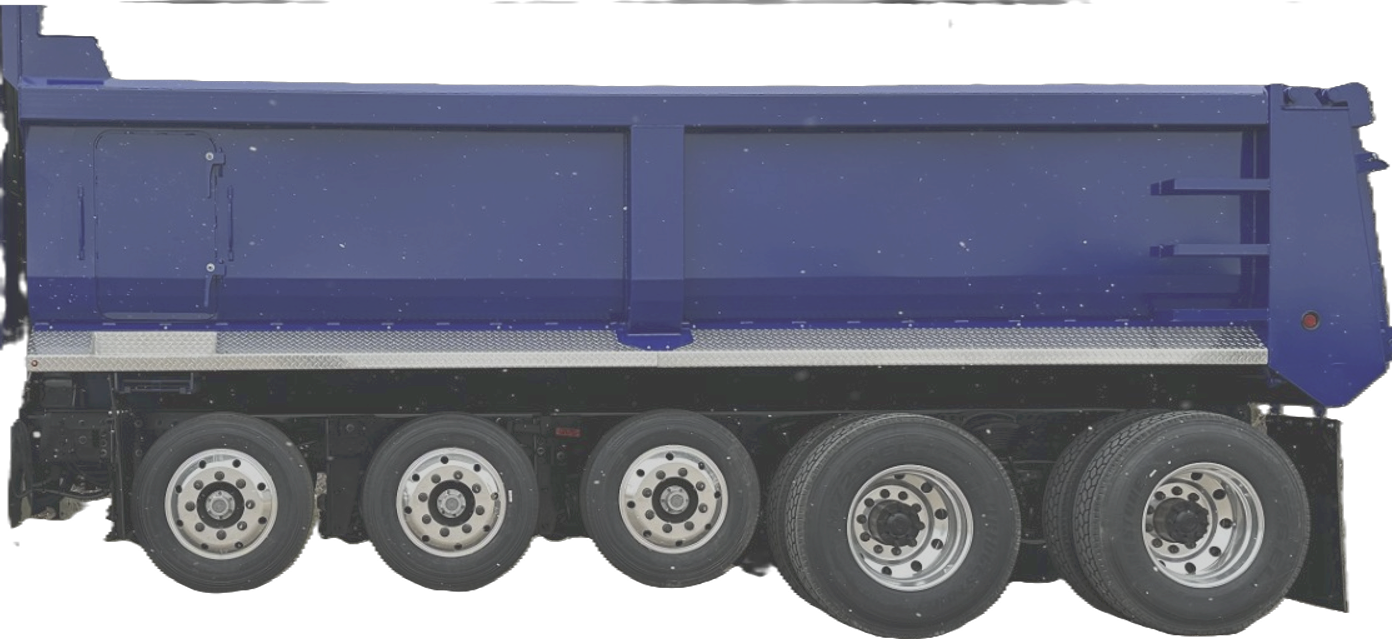

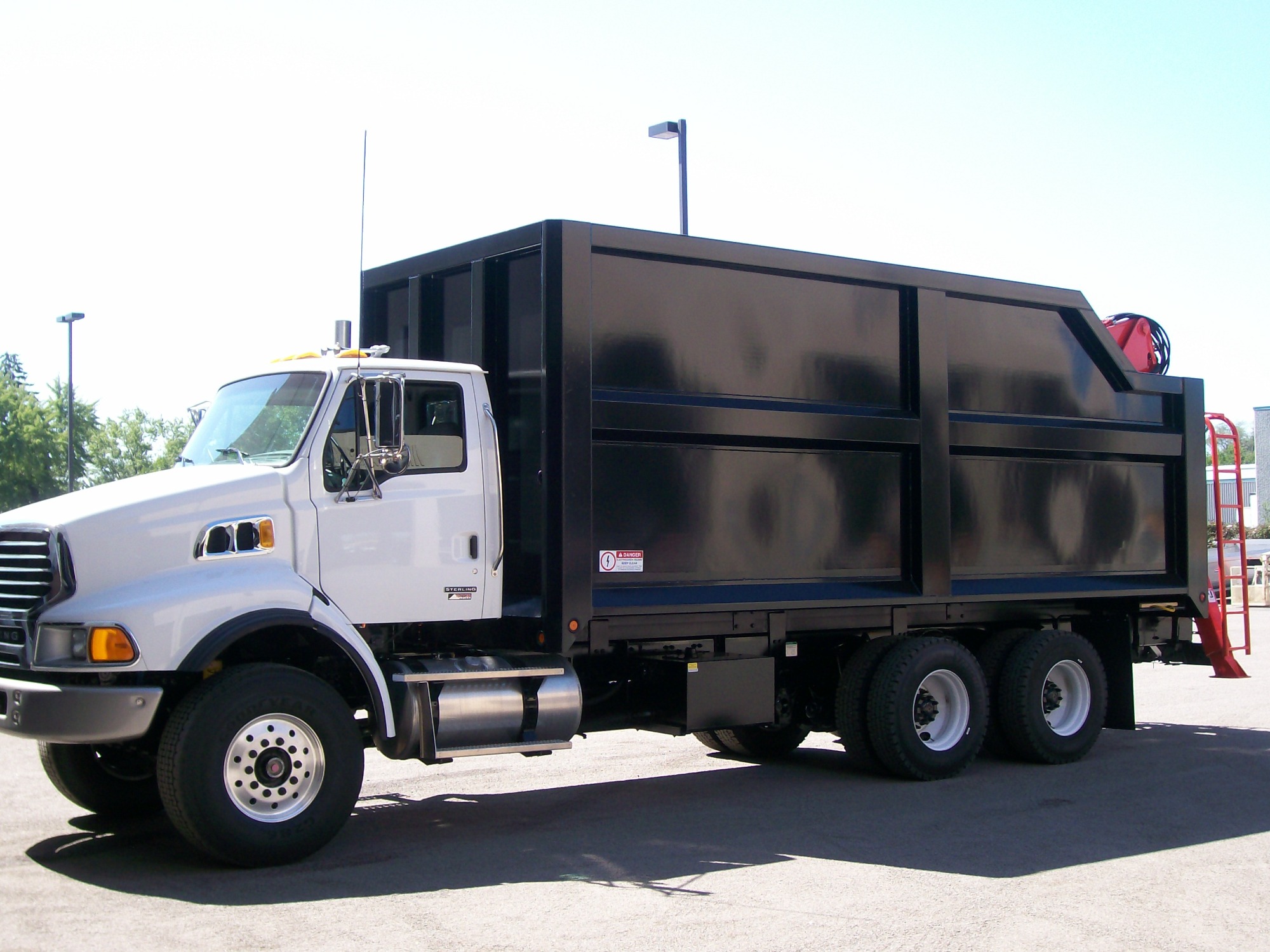

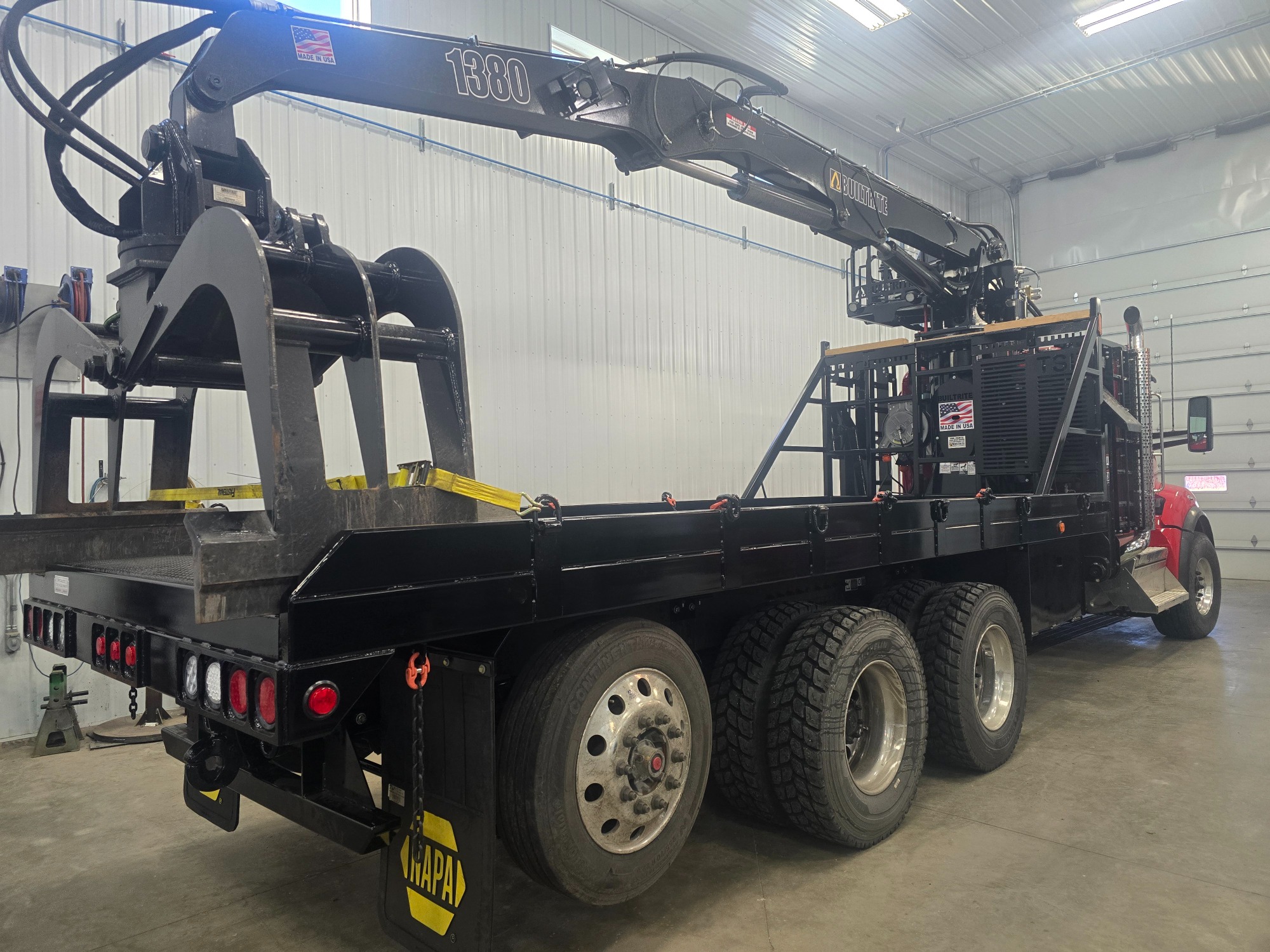

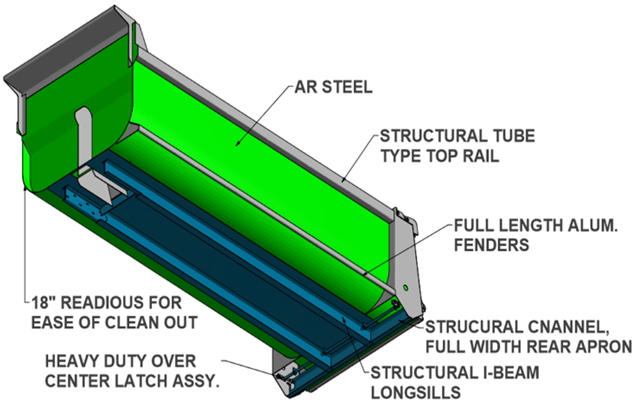

S.TE. Offers Contractor, Elliptical & Square Style Bodies. Heavy Duty and Mild Steel Options available. Double walled & Smooth sided options. Flatbed & Tree Bodies included.

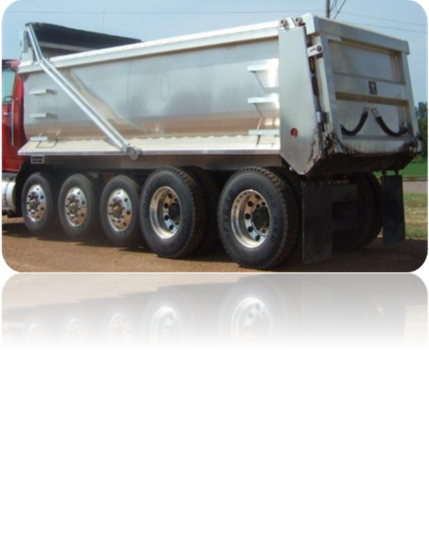

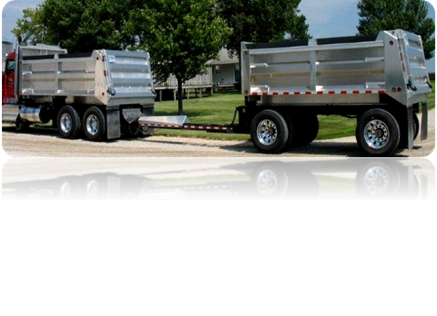

STEEL, ALUMINUM & STAINLESS STEEL
Also offer Custom Built Applications To Meet Customers Needs!

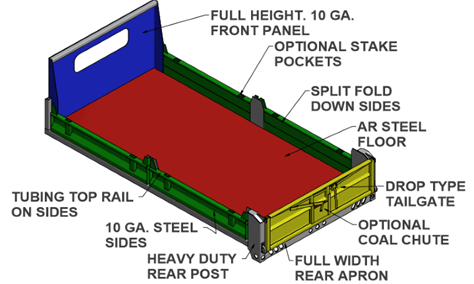

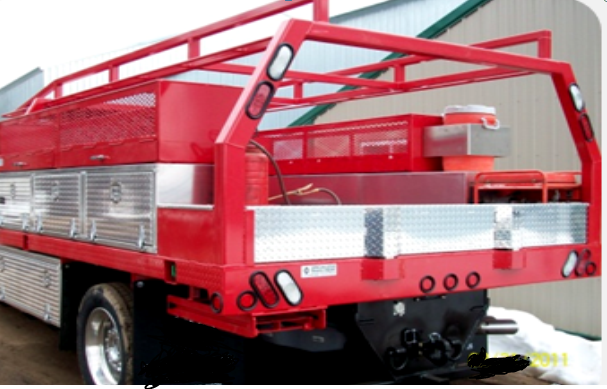

S.T.E. FLATBEDS
DEMENSIONS: 8’ to 24’ long 96” or 102” wide.
HEADBOARD: 10ga w/ 3x3x3/16 structural tubing, window mesh opening to match cab. Cab shield is optional
SIDES: 5x2x1/4 structural tubing
UNDERSTRUCTURE: Long-sills 6” C-Channel, Cross-members 3x3x3/16 sq. tubing
FLOOR: Tread Plate or tongue and grove.
REAR APRON: 1/4” steel plate HR A-36
LIGHTS: 2 rear marker lights, S.T.T. Ob/round LED, wire harness included …...unlimited flatbed options per customer requests.

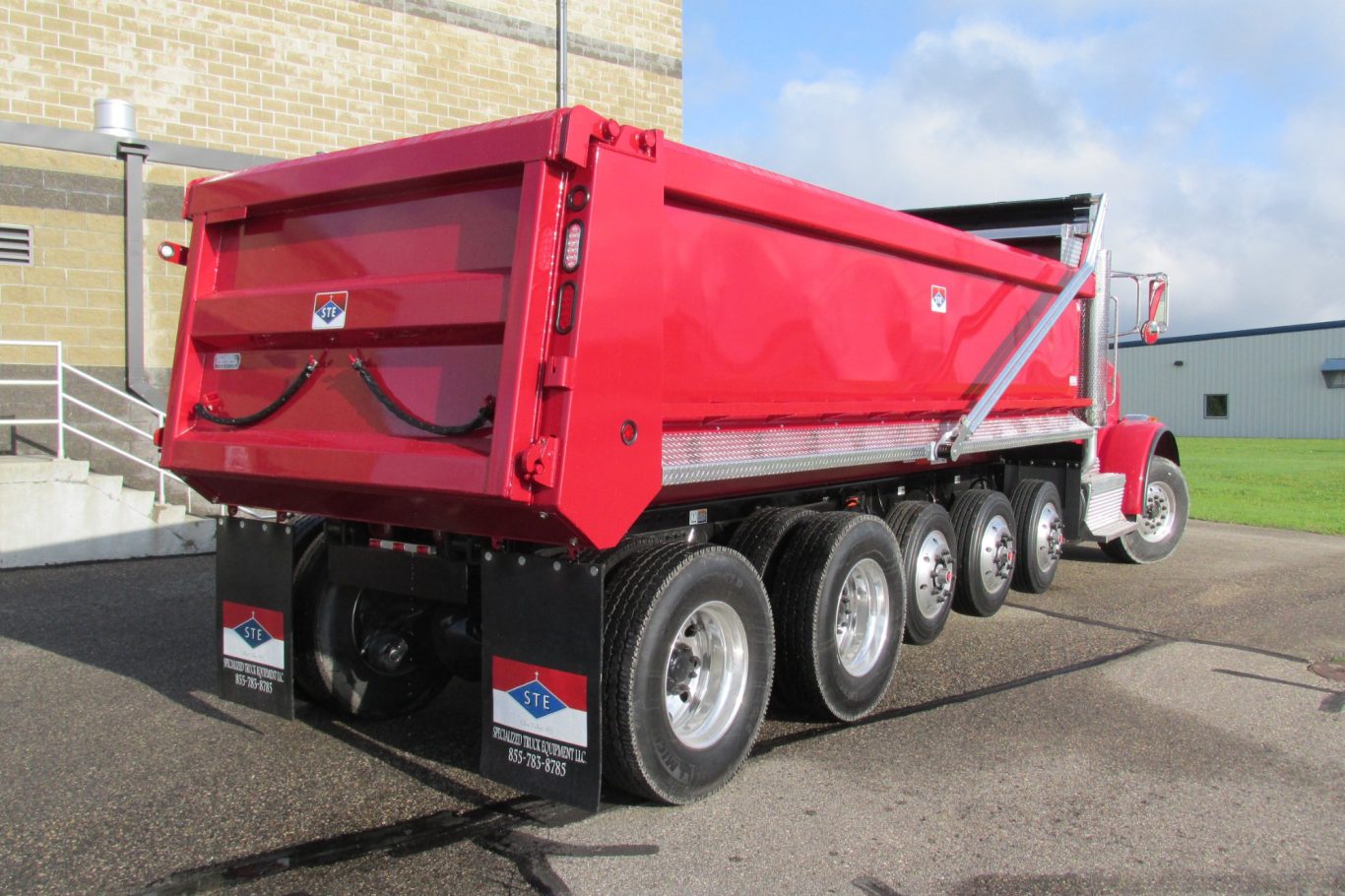

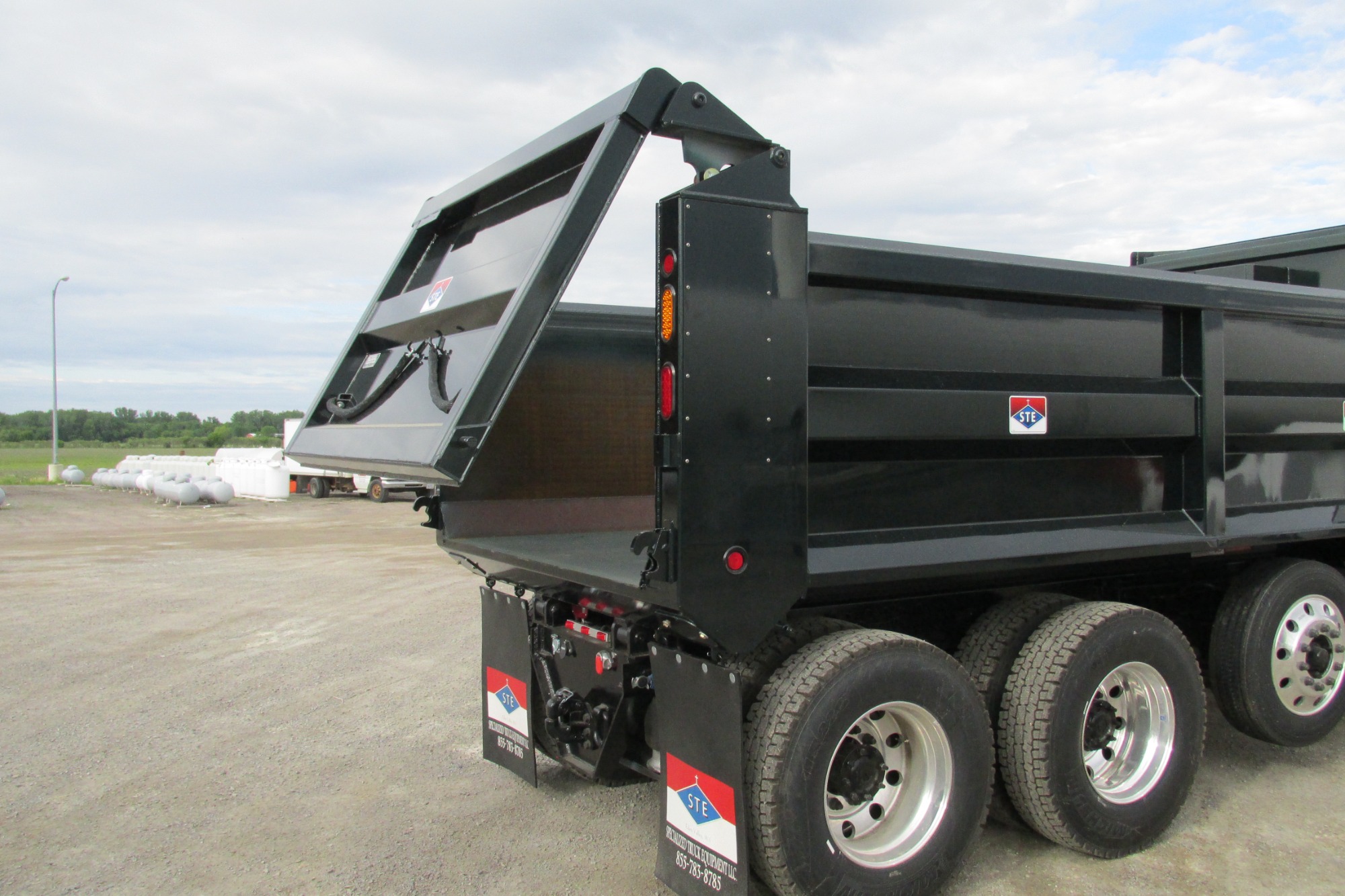

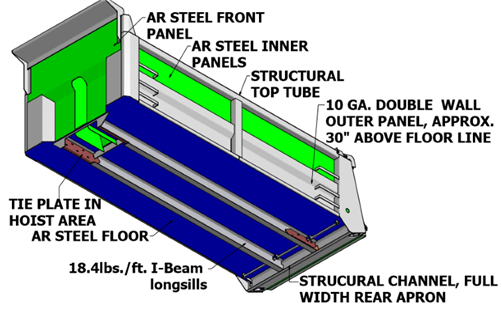

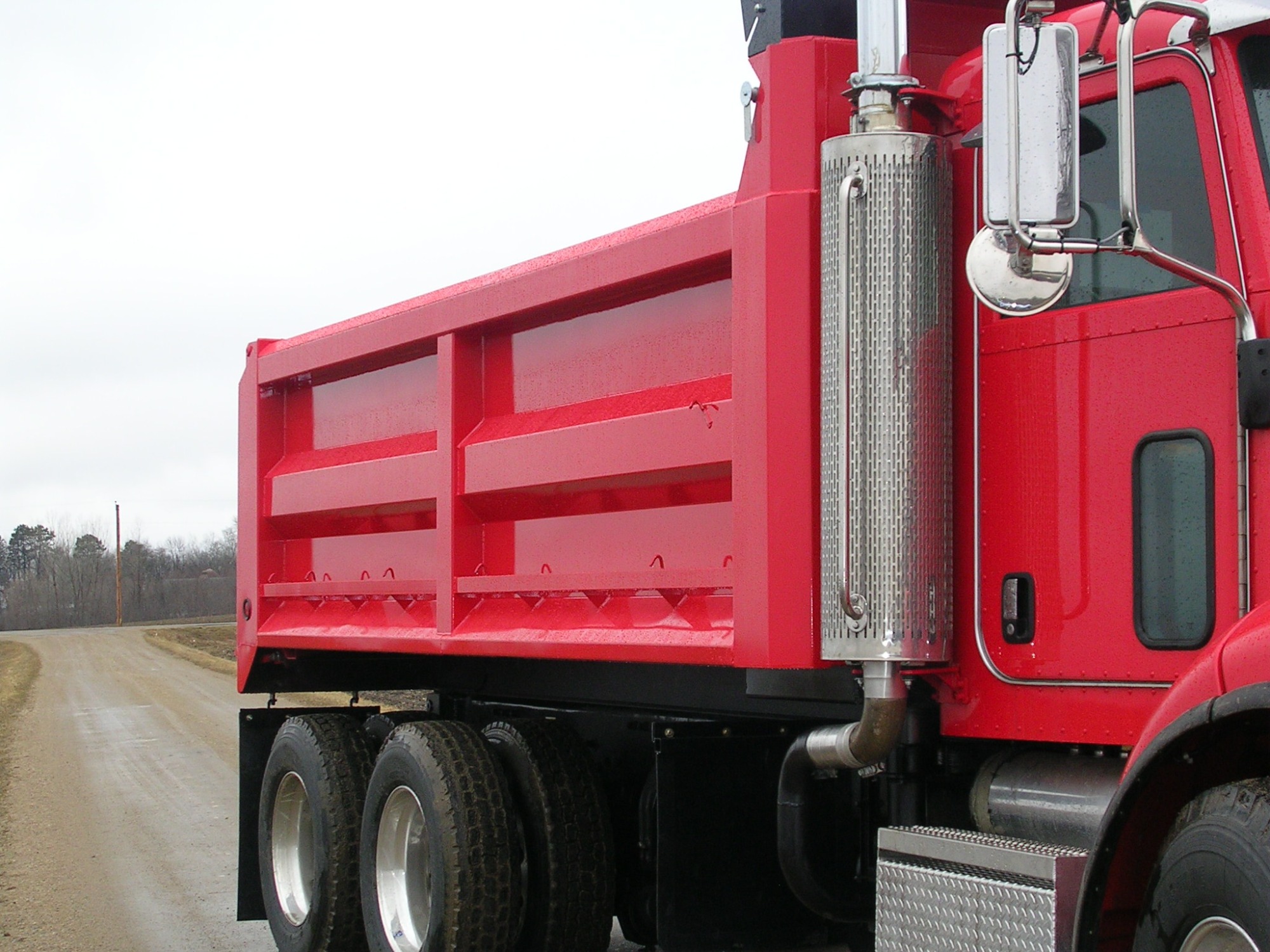

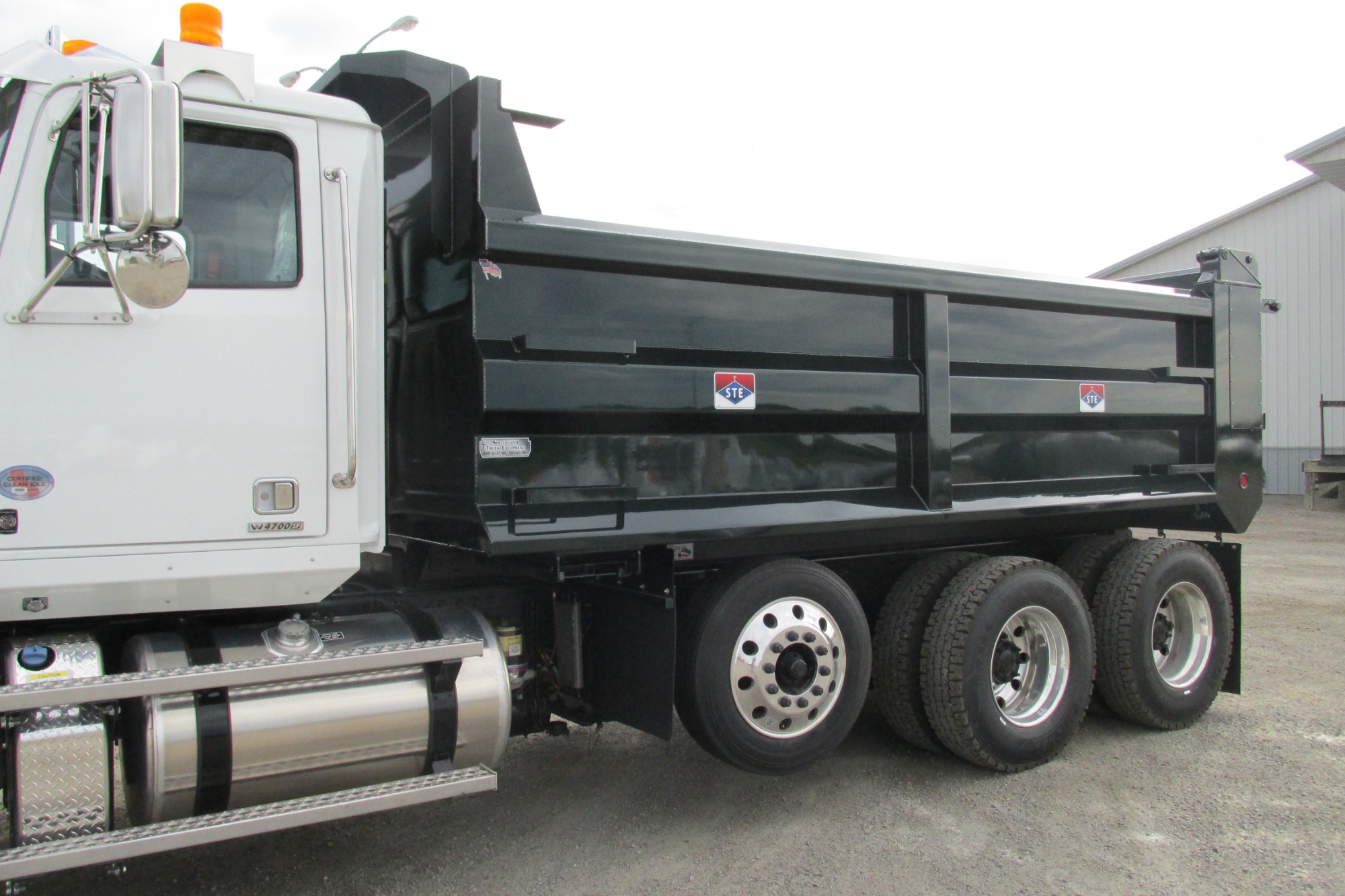

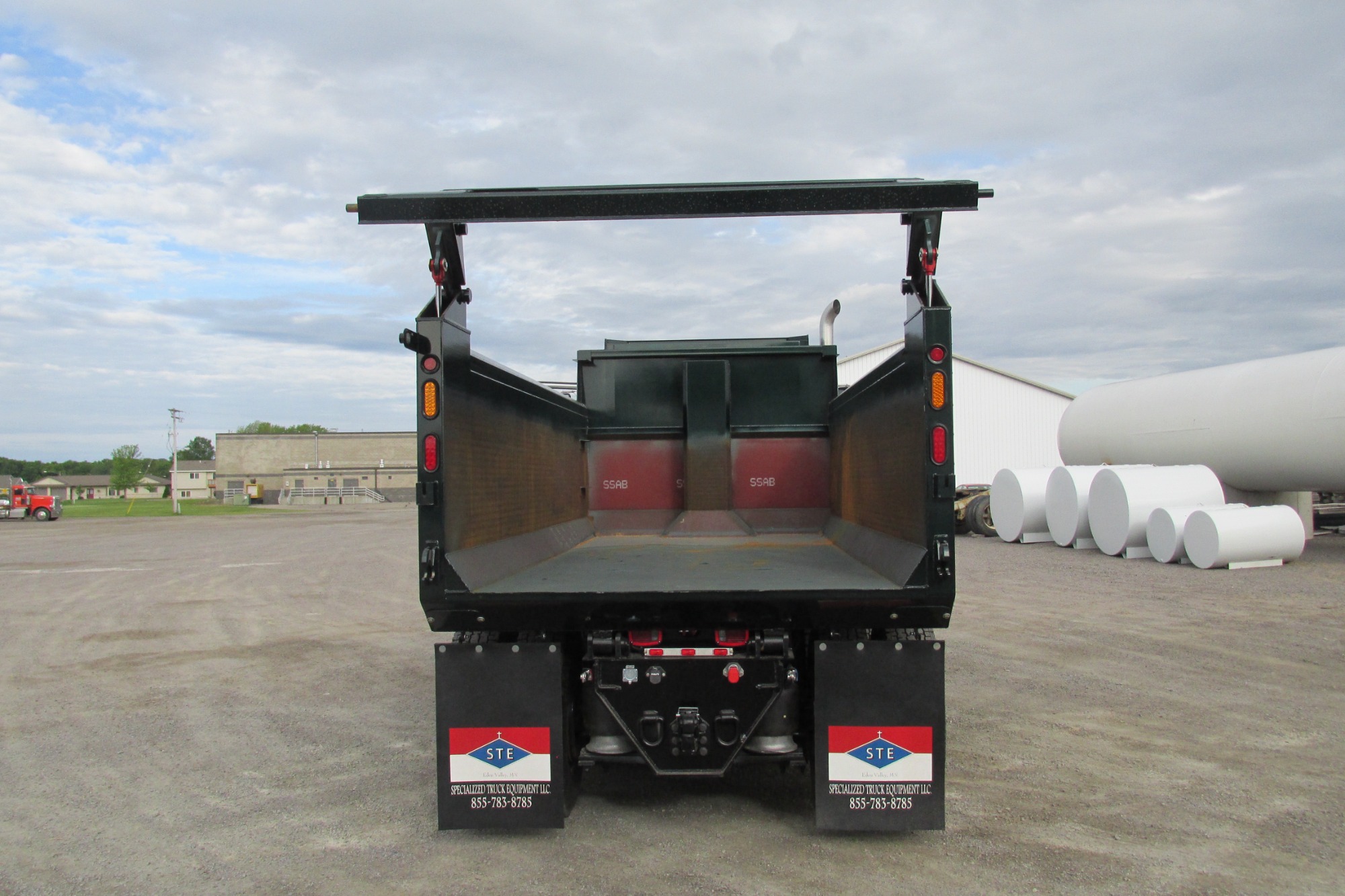

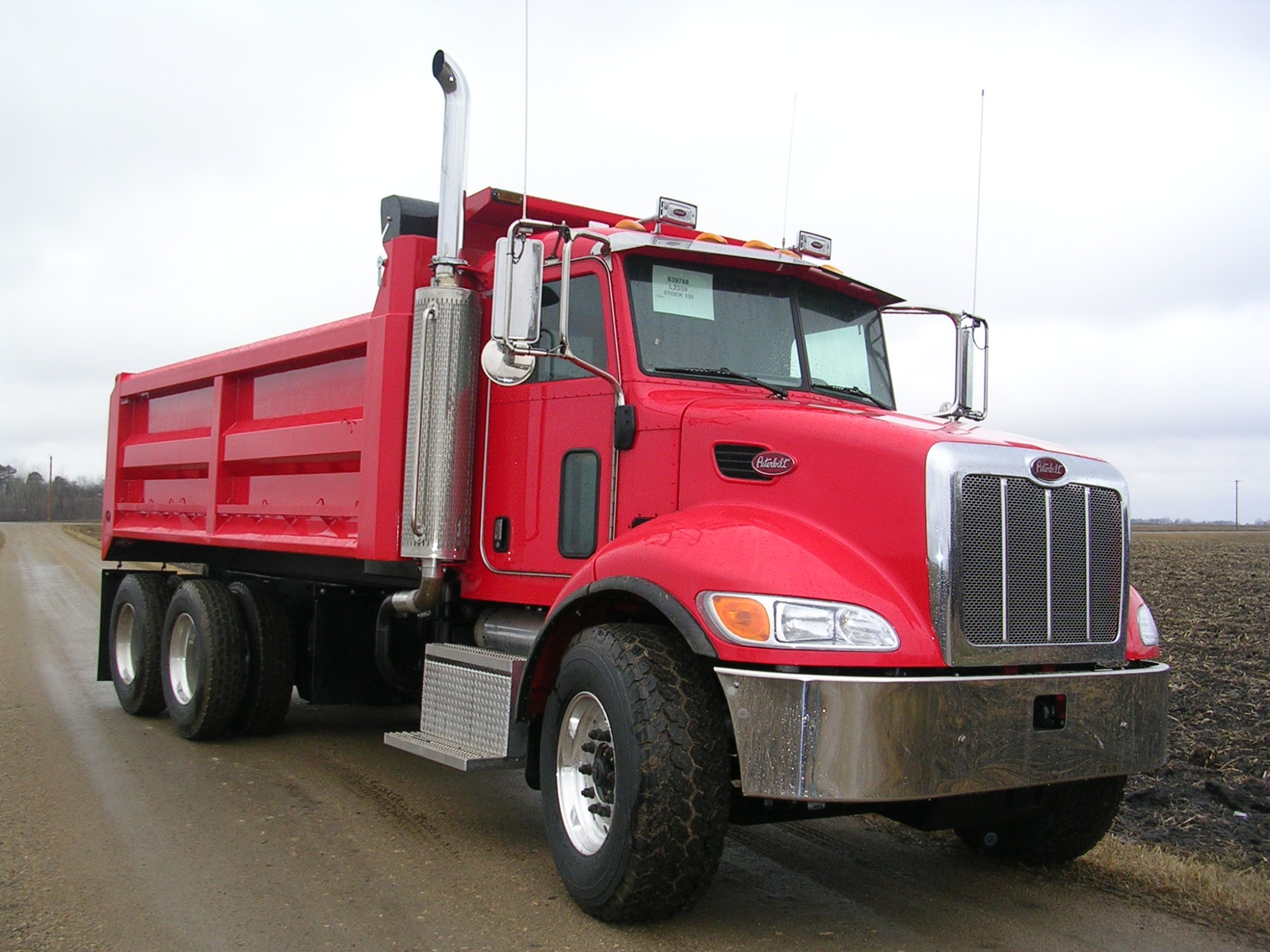

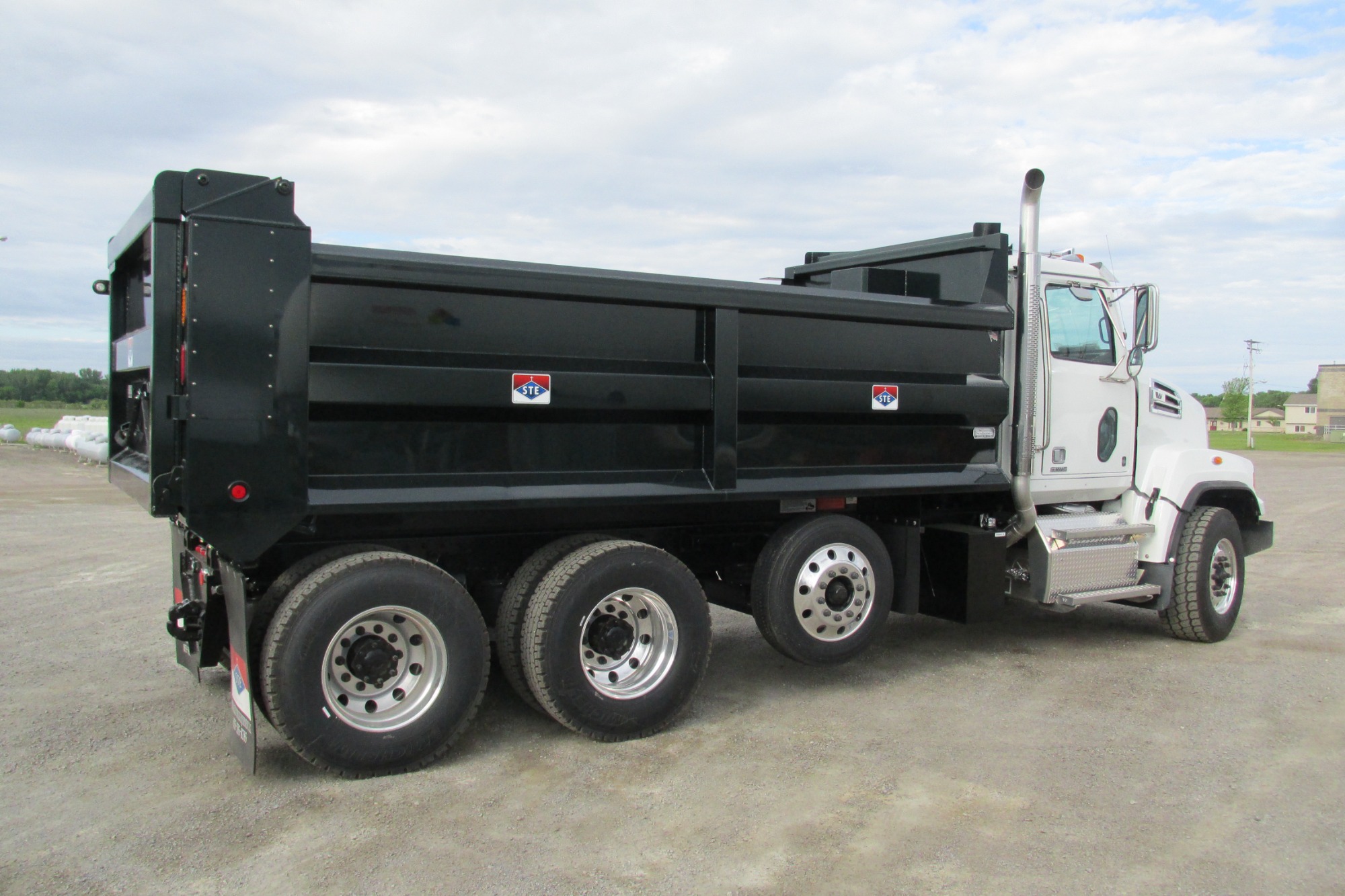

HEAVY DUTY GRAVEL
DEMENSIONS: 14’ to 20’ long 96” wide.
HEADBOARD: 61”- 71” 3/16 AR400, 3x3x3/16 top tube, trim-line recess for reservoir.
CAB SHEILD: 10ga 1/3 type 14” wide custom fit to cab and exhaust.
DOGHOUSE: 3/16 AR400 trunnion or conventional pin to pin type.

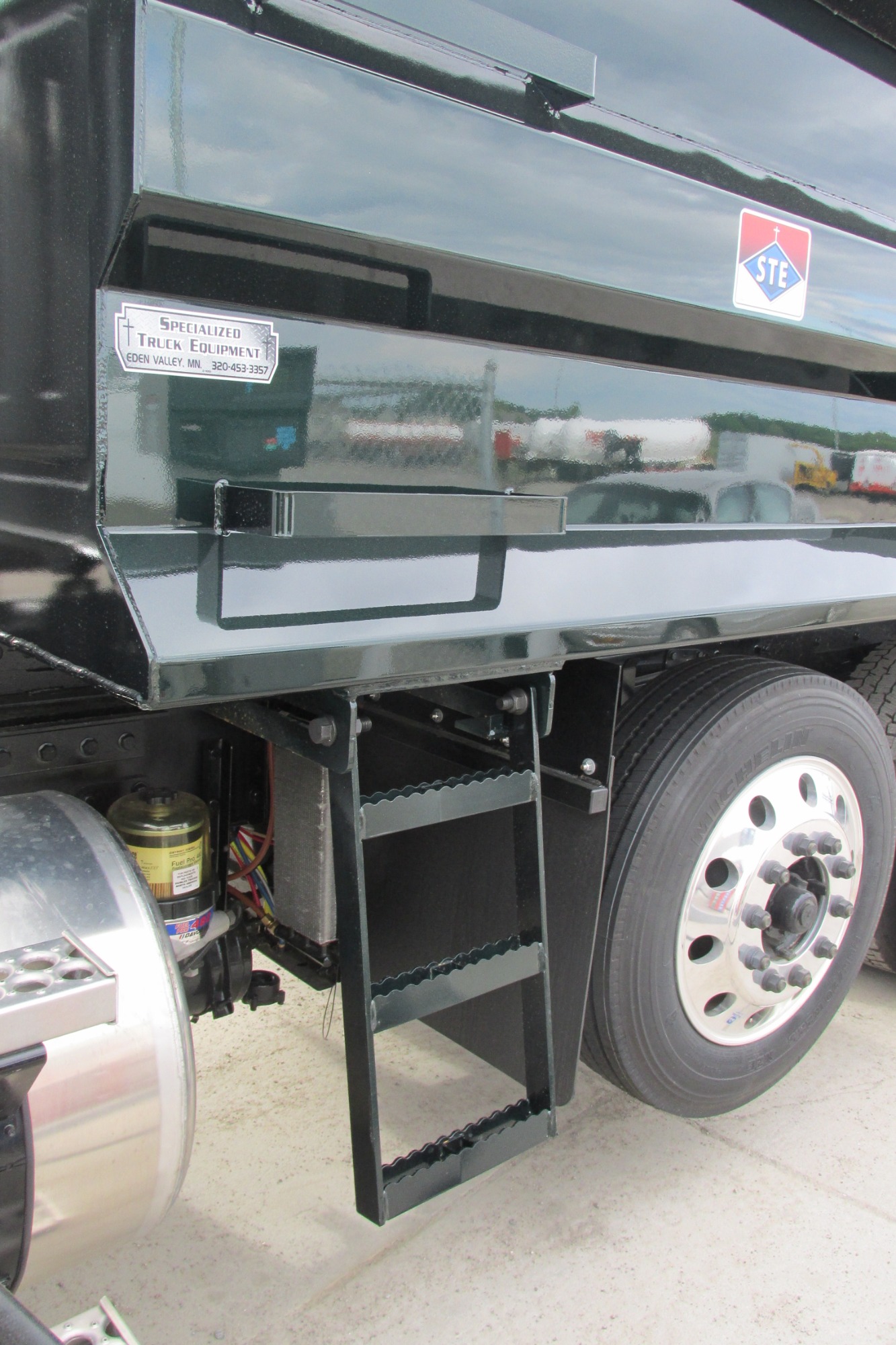

SIDES: 3/16 AR400 material, Straight or sloped, double walled w/ 10ga outer 30” above floor line, 2”x1/4” flat bar walk rail, drivers side mounted step ladder.

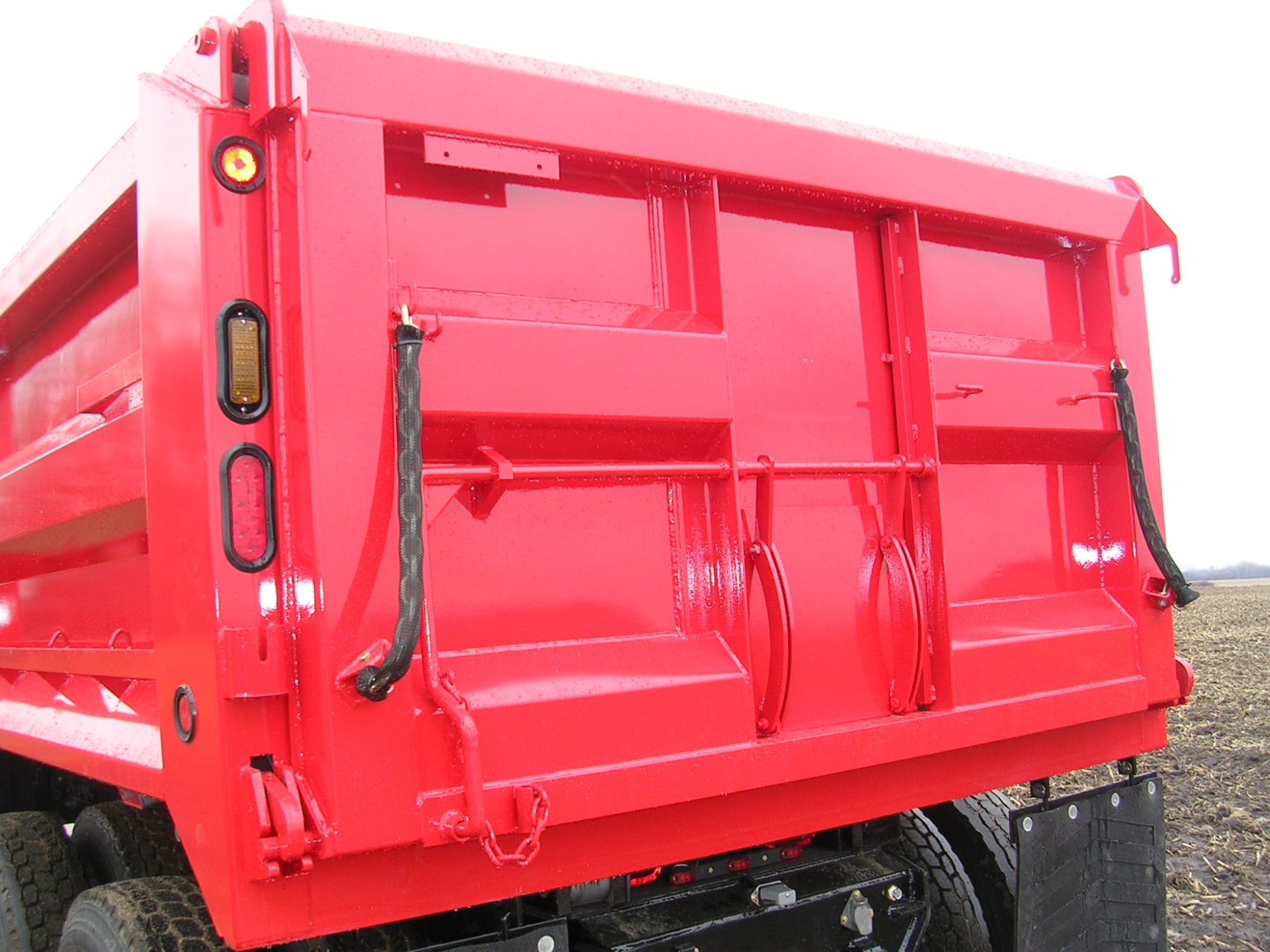

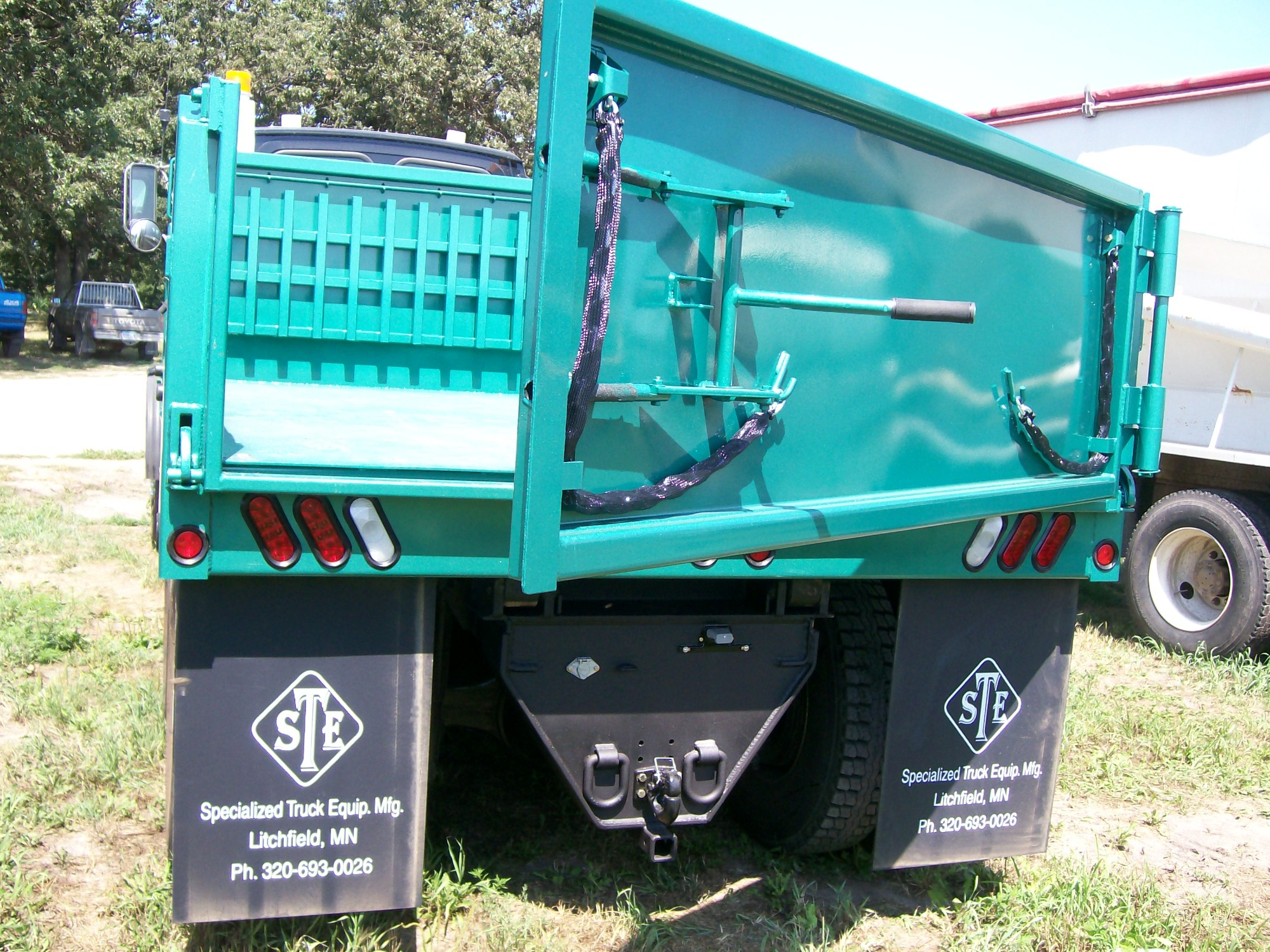

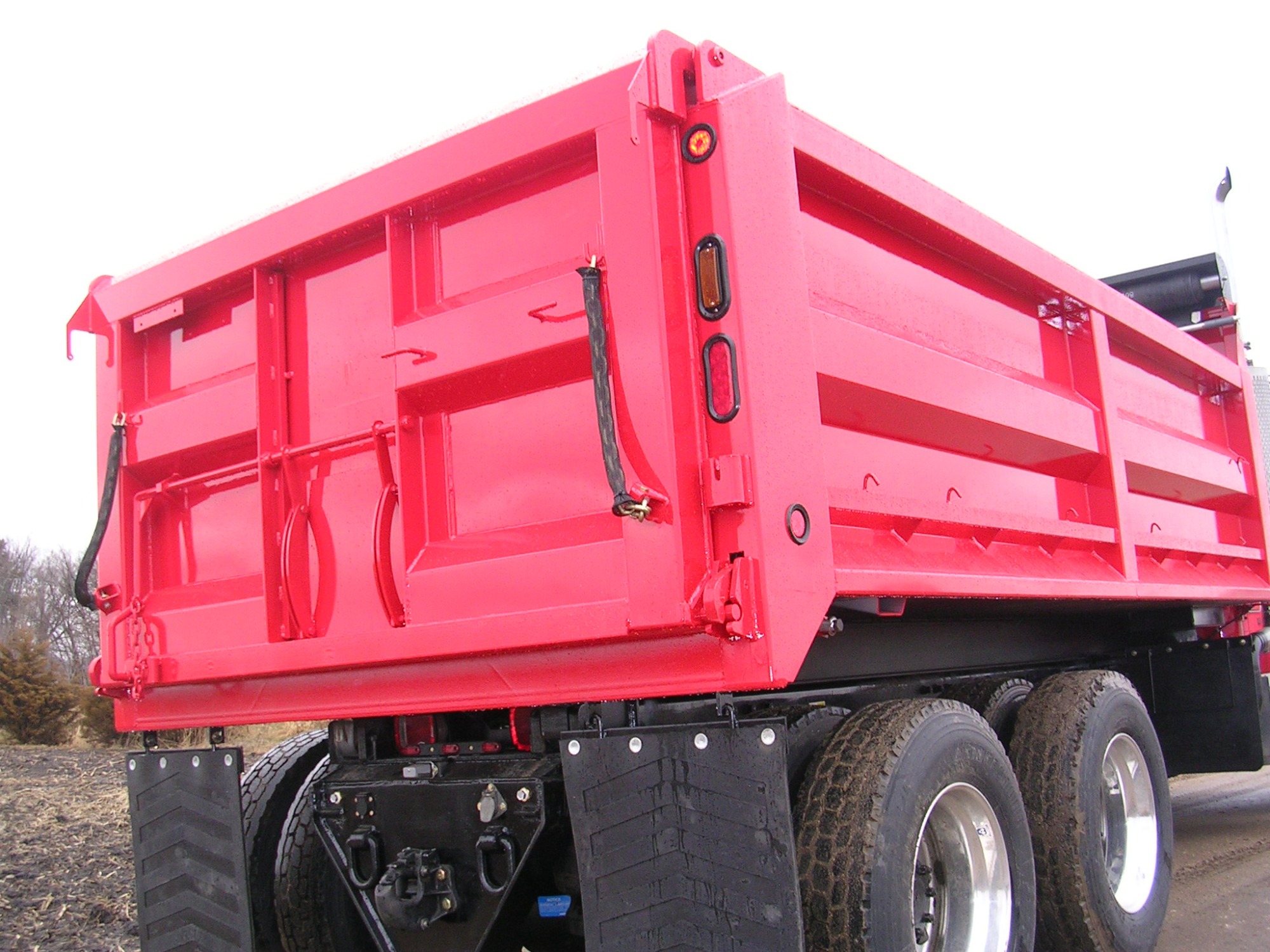

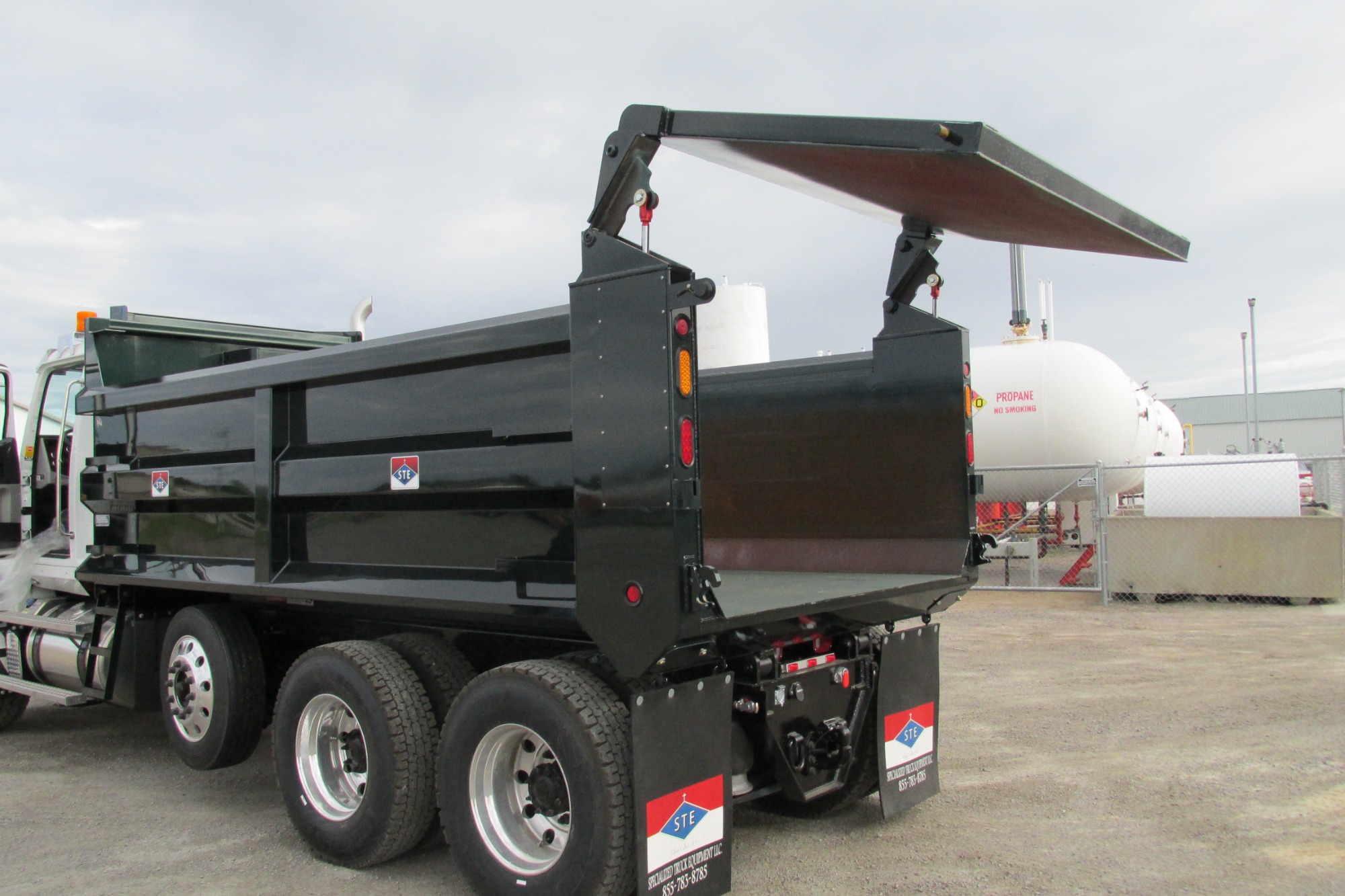

TAILGATE: 3/16 AR400 2-panel design w/ 7ga reinforcing (straight or sloped), 1-3/4” upper & 1-1/4” lower pins, 1” dual over center latch assembly.
UNDERSTRUCTURE: 8” X 18.4 lbs./ft. structural I beam cross member-less type.

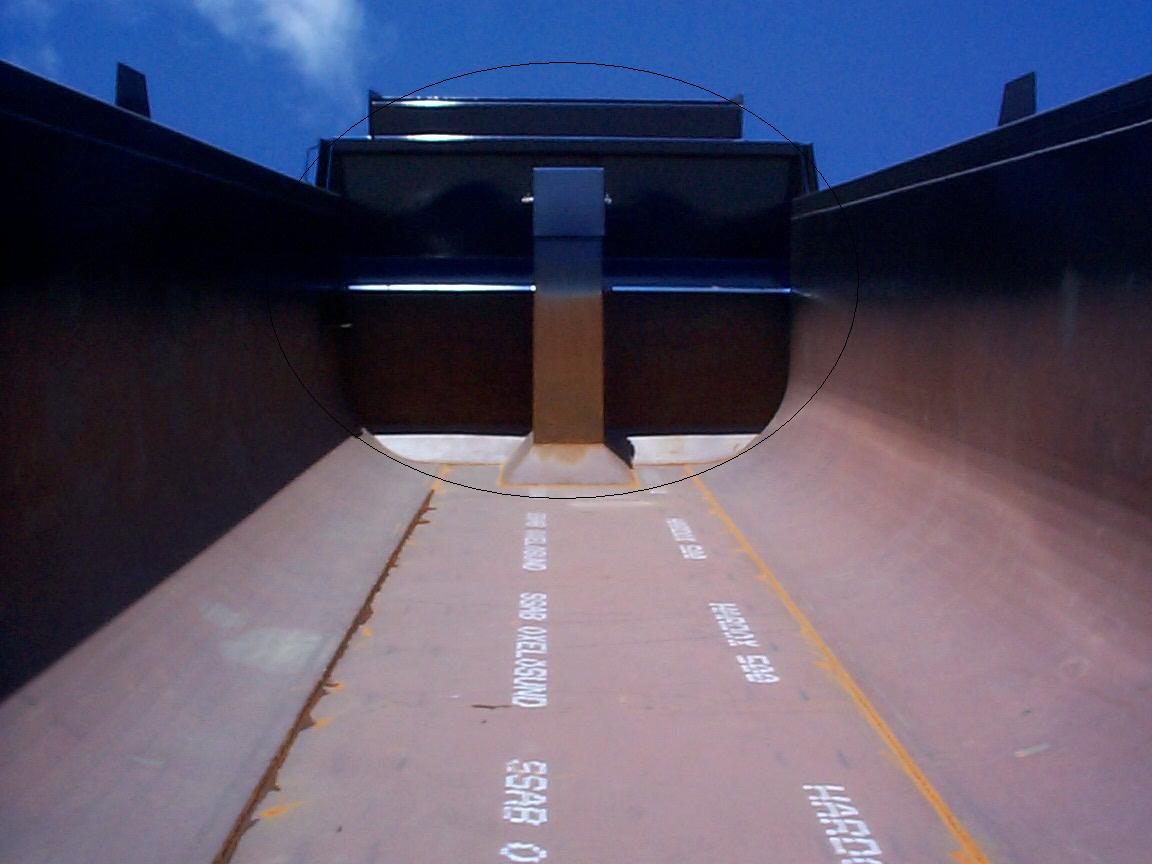

FLOOR: 1/4 AR400 w/ front side to side & front to rear cleanouts.
LIGHTS: 2 side & rear maker, S.T.T Ob/round LED rubber mounted in rear corner posts, wire harness included…..unlimited gravel body opt. per customer requests.
